High Performance Multi Core Copper Cable 8 Core PVC Copper Wire Oil Resistant
FLEXTEL 140 H05VV5-F is a cable for signalling and control systems. It is especially suitable for connecting industrial equipment and machine tools. Due to its properties, it is recommended for robotics and light mobile services. Its special vinilic outer sheath compound is particularly resistant to mineral oils and other chemical agents. It can be installed in either dry or humid environments.
FLEXTEL 140 H05VV5-F cable performance
Electrical performance
LOW VOLTAGE 300/500 V
Standard
EN 50525-2-51
Approvals
CE
HAR
AENOR
SASO
RoHS
Construction Product Regulation
Eca
Thermal performance
Maximum service temperature: 60ºC.
Maximum short-circuit temperature: 150ºC (max. 5 s).
Minimum service temperature: 5ºC.
Fire performance
Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.
Mechanical performance
Minimum bending radius: 3 x cable Ø (up to 12 mm2).
4 x cable Ø (12 mm2 onwards).
Impact resistance: AG2 Medium severity.
Chemical performance
Chemical & Oil resistance: Excellent.
Grease & mineral oils resistance: Good.
Water performance
Water resistance: AD5 Jets.
Other
Meter by meter marking.
Installation conditions
Open Air.
In conduit.
Applications
Industrial use.
Mobile use.
Robotics.
FLEXTEL 140 H05VV5-F cable design
Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
Flexible PVC.
The standard identification of insulated conductors is the following:
2 x Black numbered
3 or more conductors Black numbered + Green/yellow
Outer sheath
Flexible PVC oil resistant outer sheath, grey colour.

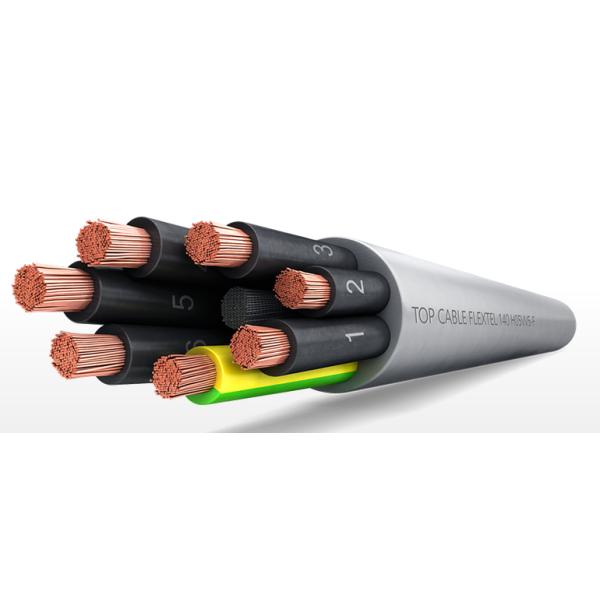

Technology
- 1. Conductor
- Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
- 2. Insulation
- Flexible PVC.
- The standard identification of insulated conductors is the following:
- 2 x Black numbered
- 3 or more conductors Black numbered+ Yellow/green
- 3. Outer sheath
- Flexible PVC oil resistant outer sheath, grey colour.
